Garmin Zūmo® R1 Radar AccessoriesRef : GAR0038 / 010-02902-10

DRIVE IN COMPLETE SAFETY

This high-performance rear radar with blind spot detection for motorbikes monitors the vehicles around you, making it easier to detect other road users.
What's more, its exterior lights enhance your visibility for greater safety.

• Thanks to its excellent range and accuracy, the radar and indicator lights keep you on your toes.
• The exterior side and rear lights increase your visibility, while the indicator lights on the handlebars help you spot surrounding vehicles.
• Compact and discreet, the device can be fitted above or below your number plate.
• When your headset and the Zūmo™ Radar smartphone app are paired, audio alerts let you know when nearby vehicles are present.
• Pair your radar with a compatible smartphone or motorbike GPS zūmo® XT2 to display a radar view directly on their screen.

OPTIMUM COVER FOR SAFER DRIVING

This rear radar with blind spot detection provides effective surveillance of your surroundings, making it easier to detect vehicles and other road users.
With maximum range and optimum accuracy, it switches off automatically after 10 minutes' standby time.

Enhanced visibility thanks to exterior lights:

• Rear-facing red light.
• Yellow lights on the sides.
• Light sensor automatically adjusts brightness.
• Visual and audible alerts for increased vigilance

Indicator lights on the handlebars provide real-time information on:

• Vehicles in blind spots.
• Approaching vehicles.

Installation and compatibility:

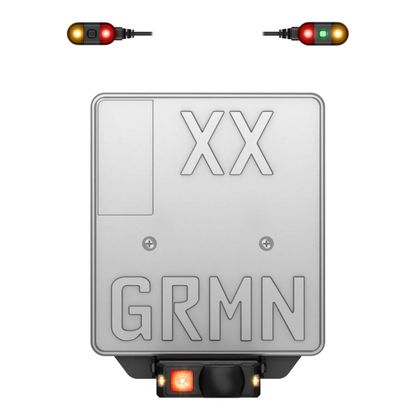

• Can be fitted above or below the number plate.
• Versatile mounting bracket for different plate sizes.

Advanced functionalities with a compatible smartphone or Zümo® XT2 GPS

• Audio alerts indicating the presence of nearby vehicles (requires pairing with a headset and the Zümo™ Radar smartphone app).
• Activation and deactivation of audio alerts.
• Full screen display of the radar.

• Sensor dimensions (W × H × D): 78.75 x 26.95 x 30 mm
• Lamp dimensions (W × H × D): 42.56 x 17.31 x 14 mm
• Sensor weight, with cable, without brackets:  142,8 g
• Weight of lights, with cable, without brackets:  97,4 g
• Radar supports:  Number plate bracket or multi-purpose bracket
• Handlebar indicator brackets:  Support for rear-view mirror, cable ties or adhesive brackets
• Power source:  12 V wired power supply (installation required)
• BLE :  Yes (for the smartphone application and the zūmo)
• Water resistance:  IP67
• Status indicator:  Yes
• Power/mode button:  Yes
• Automatic stop when parked:  Yes (after 10 min)
• Radar detection distance:  Up to 60 metres
• Radar detection angle (horizontal) :  170
• Minimum speed for radar to work properly:  24 km/h (15 mph)
• Exterior red light facing rear:  Yes
• Yellow exterior lights on the sides:  Yes
• Setting to activate/deactivate exterior lights:  Yes
• Light sensor for automatic brightness adjustment:  Yes
• Indicator lights on the handlebars to warn of vehicles in blind spots while driving:  Yes
• Indicator lights on the handlebars to warn of approaching vehicles while driving:  Yes
• Audio alerts with paired headphones:  Yes (if paired with a compatible smartphone or GPS zūmo XT2)
• Audio alerts on/off setting:  Yes (if paired with a compatible smartphone or GPS zūmo XT2)
• Full-screen display of radar:  Yes (if paired with a compatible smartphone or GPS zūmo XT2)

• Zūmo™ R1 Radar
• Indicator lights
• Motorcycle stands and equipment
• Documentation
